Precision Metal Parts with DMLS 3D Printing

Experience high-quality, fully dense metal parts with our advanced Direct Metal Laser Sintering (DMLS) technology. Ideal for complex geometries and functional prototypes, we bring your metal concepts to life with unmatched accuracy and material properties.

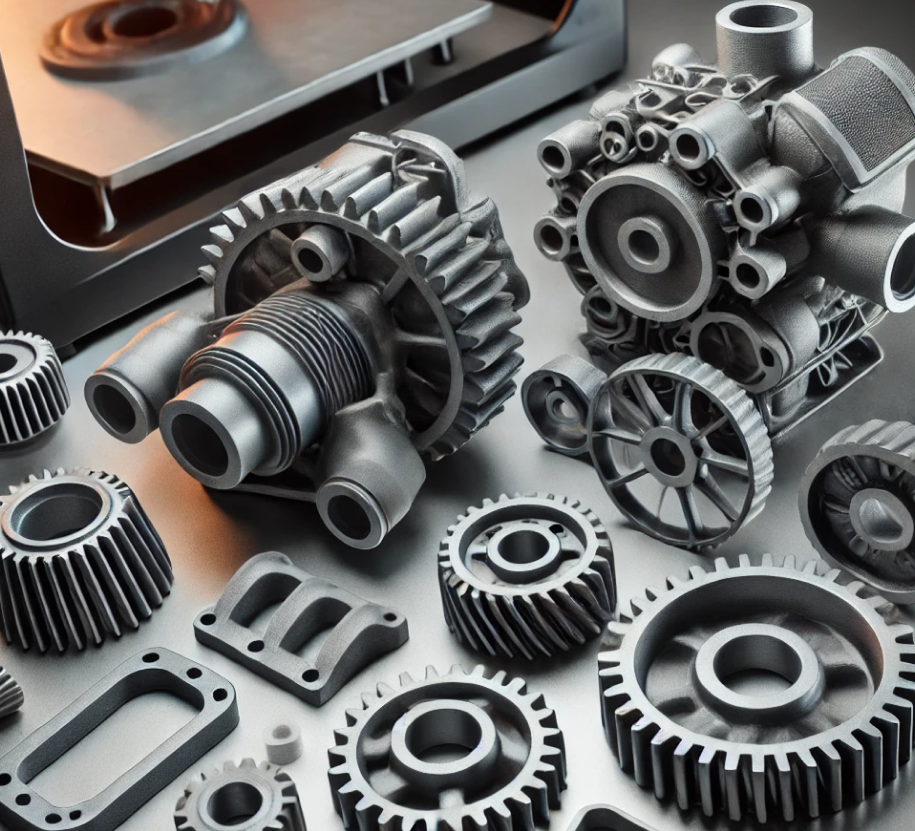

DMLS-page-header-banner-image

DMLS Capabilities

Our Direct Metal Laser Sintering 3D Printing Capability

Explore our advanced DMLS 3D printing capabilities, delivering high-performance metal parts with complex geometries and excellent mechanical properties. From functional prototypes to end-use components, we ensure high-quality output tailored to your exact specifications.

  • checked-pointsComplex Metal Geometries
  • checked-pointsHigh Strength and Density
  • checked-pointsRapid Prototyping and Production
REQUIREMENTS SPECIFICATIONS
Maximum build size 250 x 250 x 325mm
Standard lead time 7-10 business days
Dimensional accuracy ±0.1 mm
Layer thickness 20-60 μm
Minimum Feature Size 0.3mm
complex-metal-parts-DMLS-image

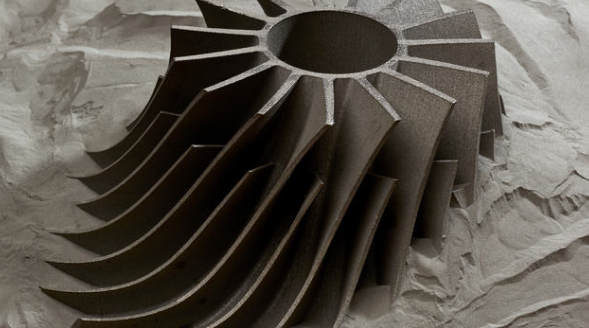

ComplexMetal Parts
functional-prototypes-and-use-parts-DMLS-image
Functional Prototypes,andEnd-Use Parts
MaterialVariety
material-variety-DMLS-image
High Precisionand Surface Quality
high-precision-and-surface-quality-DMLS-image

DMLS design

Design Guidelines for Direct Metal Laser Sintering (DMLS)

To achieve the best results with DMLS 3D printing, it's crucial to follow specific design guidelines that maximize strength, accuracy, and print quality.

  • checked-pointsHole Diameters: Holes should be designed with a minimum diameter of 1.0 mm to ensure accuracy and ease of post-processing.
  • checked-pointsAvoid Enclosed Volumes: Fully enclosed voids can trap unsintered powder; design parts to allow for powder removal through access holes.
  • checked-pointsOrientation Considerations: Consider the build orientation to optimize surface quality, mechanical properties, and minimize support structures.
REQUIREMENTS SPECIFICATIONS
Suggested minimum wall thickness 600 x 600 x 500mm
Supported wall thickness 4 business days
Un-supported wall thickness 0.5mm
Minimum Feature size 100-300 μm
Minimum hole size 20-100%

Materials

High-Quality DMLS Materials

The materials used in DMLS 3D printing fall into several categories, each with its own properties, advantages, and limitations. Here's an overview of the main categories of DMLS 3D printing materials:
