Design for Additive Manufacturing (DfAM): An Extensive Guide

What is Additive Manufacturing ?

Additive manufacturing, commonly known as 3D printing, creates objects by adding material layer by layer directly from digital models. Unlike traditional subtractive manufacturing methods that remove material to shape a part, additive manufacturing builds parts with precision and minimal waste. This innovative approach allows for producing complex geometries and customized solutions that were previously unattainable. To understand this further,click here.

Importance of Design in Additive Manufacturing

Design is the cornerstone of successful additive manufacturing (AM), dictating not only the feasibility and functionality of the final product but also its efficiency, cost, and environmental impact. Understanding and leveraging the principles of AM-specific design can significantly enhance the advantages offered by this transformative technology. Below, we explore the various aspects that underscore the critical importance of design in additive manufacturing.

By understanding and applying AM-specific design principles, companies can fully harness the potential of additive manufacturing, driving advancements across various industries and shaping the future of production. As you continue to explore and implement AM, thoughtful design will be your key to unlocking its vast possibilities.

Types of Additive Manufacturing Processes in Brief

3D printing technologies, also commonly known as additive manufacturing (Are 3D Printing and Additive Manufacturing the same? Click here to know), encompass a variety of processes that create objects layer by layer from digital models. Here is a brief overview of the most common 3D printing technologies:

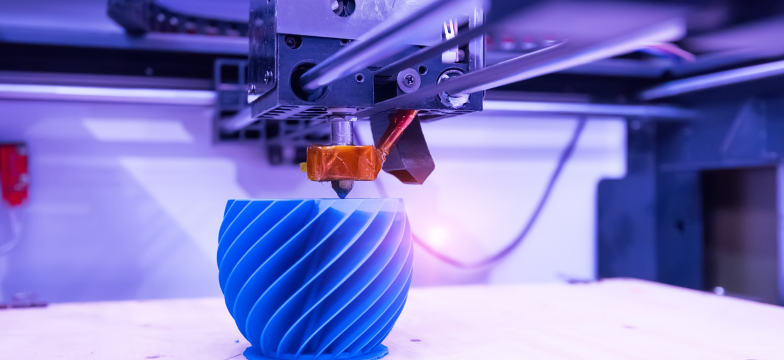

1. Fused Deposition Modeling (FDM)



   FDM, also known as Fused Filament Fabrication (FFF), is one of the most widely used 3D printing technologies. It works by extruding thermoplastic filament through a heated nozzle, layer by layer, to build up the desired object. FDM is popular for its affordability, ease of use, and versatility, making it ideal for prototyping and hobbyist projects. Click here to learn more in-depth about FDM.

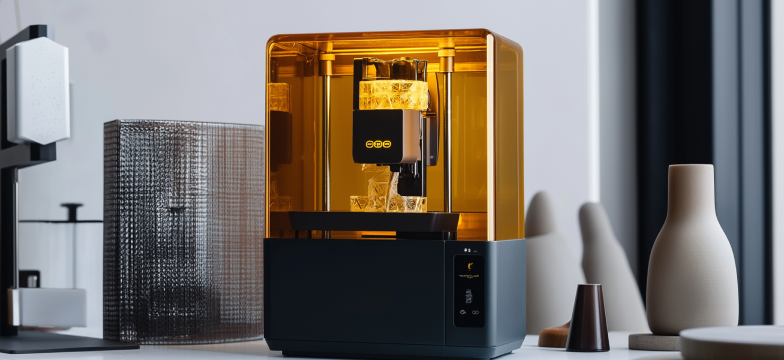

2. Stereolithography (SLA)



   SLA uses a laser to cure liquid resin into hardened plastic in a process called photopolymerization. This technology is known for producing high-resolution, highly detailed parts with smooth surface finishes. SLA is widely used in industries requiring precision, such as jewelry, dental, and medical device manufacturing. Click here to learn more about SLA.

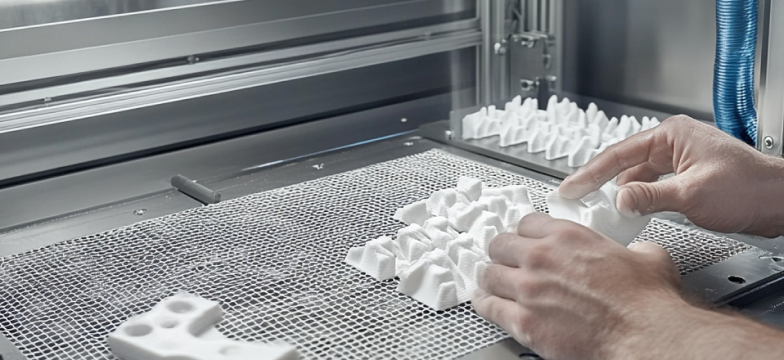

3. Selective Laser Sintering (SLS)



   SLS utilizes a high-powered laser to fuse small particles of polymer powder into a solid structure. Each layer of powder is spread across the build platform and selectively sintered by the laser. SLS is valued for its ability to produce durable, complex geometries without supporting structures, making it suitable for functional prototypes and end-use parts. Click here to learn more about SLS.

4. Digital Light Processing (DLP)



   Similar to SLA, DLP uses light to cure resin, but it differs in that it uses a digital projector screen to flash each layer simultaneously rather than tracing it with a laser. This results in faster print times compared to SLA. DLP is known for high speed and accuracy, making it ideal for detailed models and small parts. Click here to learn more in-depth about DLP.

5. Binder Jetting



   Binder jetting involves laying down a layer of powder and then selectively depositing a liquid binder to glue the particles together. This process is repeated layer by layer to build the object. Binder jetting can use various materials, including metals, ceramics, and sand, and is often used for full-color prototypes and metal casting molds. Click here to learn more about Binder Jetting.

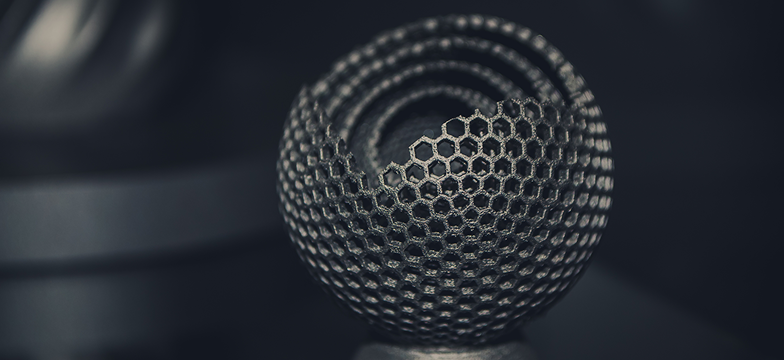

6. Direct Metal Laser Sintering (DMLS) / Selective Laser Melting (SLM)



   DMLS and SLM are similar technologies that create metal parts by sintering or melting metal powder with a laser. DMLS typically operates at lower temperatures and doesn't fully melt the powder. In contrast, SLM fully melts the powder to form solid metal parts. Both are used for producing robust and complex metal components in the aerospace, automotive, and medical industries. Click here to learn more about DMLS/SLM.

7. Multi Jet Fusion (MJF)

   Developed by HP, MJF uses an inkjet array to selectively apply fusing agents to a bed of nylon powder, which is then fused by heating elements. This technology allows for the rapid production of highly detailed and durable parts and is particularly effective for functional prototypes and low-volume production runs. Click here to learn more about MJF.

Materials Used in Additive Manufacturing

In DfAM, having prior knowledge about the materials, their properties, and their applications can significantly enhance the design process. This understanding allows for creating more optimal, manufacturable designs, ensuring that the chosen material aligns with the final product's intended use and performance requirements. By integrating material knowledge early in the design phase, designers can better leverage the full potential of additive manufacturing technologies.

Below is a brief overview of the primary material categories used in additive manufacturing, highlighting their overall use case scenarios.

Design for Manufacturability (DFM)

Design for Manufacturability (DFM) involves optimizing a product design to ensure it can be manufactured quickly and efficiently. In the context of AM, DFM principles help maximize the advantages of additive processes while minimizing potential challenges.

1. Part Orientation: The orientation of a part during printing affects its strength, surface finish, and print time. Optimal part orientation can improve mechanical properties, reduce the need for supports, and enhance surface quality. Designers should consider the orientation to balance these factors effectively.
2. Layer Thickness: The layer thickness in AM influences the resolution, surface finish, and build time. Thinner layers produce finer details and smoother surfaces but increase print time. Designers must choose an appropriate layer thickness based on the required detail and efficiency.
3. Support Structures: While AM can create overhangs and intricate features, these often require support structures. Minimizing the need for supports through strategic part orientation and design can reduce post-processing efforts, material waste, and overall print time.
4. Surface Finish: The surface finish of AM parts can vary depending on the process and material used. Designers should account for the required surface finish in their designs, considering post-processing steps like sanding, polishing, or coating to achieve the desired result.
5. Tolerances and Accuracy: AM processes can produce parts with varying degrees of precision. Designers must understand the specific tolerances of the chosen AM technology to ensure the proper fit and function of assembled components. This involves designing parts with adequate tolerances for their intended applications.
6. Post-Processing Requirements: Post-processing can include removing supports, surface finishing, and other treatments to achieve the final part specifications. Designing parts to minimize post-processing can save time and costs, making manufacturing more efficient.

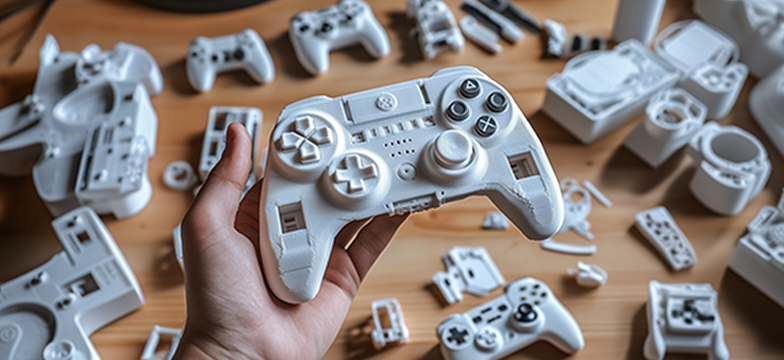

Design for Assembly (DFA)

Design for Assembly (DFA) focuses on simplifying the assembly process of a product. With AM, many traditional assembly constraints can be bypassed, allowing for more integrated and streamlined designs.

1. Part Consolidation: The orientation of a part during printing affects its strength, surface finish, and print time. Optimal part orientation can improve mechanical properties, reduce the need for supports, and enhance surface quality. Designers should consider the orientation to balance these factors effectively.
2. Snap-Fit and Interlocking Features: The layer thickness in AM influences the resolution, surface finish, and build time. Thinner layers produce finer details and smoother surfaces but increase print time. Designers must choose an appropriate layer thickness based on the required detail and efficiency.
3. Modular Design: While AM can create overhangs and intricate features, these often require support structures. Minimizing the need for supports through strategic part orientation and design can reduce post-processing efforts, material waste, and overall print time.
4. Ease of Handling: The surface finish of AM parts can vary depending on the process and material used. Designers should account for the required surface finish in their designs, considering post-processing steps like sanding, polishing, or coating to achieve the desired result.

Design for Functionality

Design for Functionality ensures that the product meets its intended purpose and performs reliably under the specified conditions. AM allows designers to incorporate unique functional features directly into the parts.

1. Customization and Personalization: AM excels at producing customized and personalized parts without additional cost. Designers can create tailored solutions for individual users or specific applications, such as medical implants, consumer products, and bespoke components.
2. Integration of Features: Functional features such as hinges, channels for fluid or airflow, and embedded electronics can be directly integrated into the design. This reduces the need for separate components and enhances the product's overall Functionality.
3. Material Selection: The choice of material impacts the final product's Functionality. As discussed earlier, Designers must select materials with the necessary mechanical properties, durability, and environmental resistance for the intended application. AM allows for using a wide range of materials, from plastics and metals to composites and ceramics.
4. Performance Optimization: By leveraging AM's capabilities, designers can optimize parts for specific performance criteria, such as weight reduction, improved strength, thermal management, and vibration damping. This often involves advanced simulation and testing to refine the design.

Design for Cost Efficiency

Design for Cost Efficiency involves creating designs that minimize production costs while maintaining quality and performance. AM offers several innovative design strategies for achieving cost efficiency.

1. Material Efficiency: Designing parts to use material efficiently can significantly reduce costs. This includes minimizing waste through optimized geometries and internal structures and selecting cost-effective materials that meet performance requirements.
2. Production Time: Reducing print time is crucial for cost efficiency. Designers can achieve this by optimizing part orientation, reducing the need for supports, and simplifying geometries where possible. Faster production times lead to lower operational costs and higher throughput.
3. Post-Processing Minimization: Post-processing can be a significant cost driver in AM. Designing parts that require minimal post-processing, such as support removal, surface finishing, and assembly, can lower overall production costs and accelerate time-to-market.
4. Batch Production and Scaling: While AM is often used for low-volume and customized production, it can also be cost-effective for small to medium quantities batch production. Designing parts for efficient batch processing, including nested arrangements and multi-part builds, can maximize the efficiency of the AM process.

Popular CAD Software Tools

• Autodesk Fusion 360 : Known for its comprehensive cloud-based CAD/CAM/CAE capabilities, Fusion 360 enables seamless collaboration and iteration throughout the design process. Its robust tools for parametric modeling, mesh editing, and generative design make it a go-to choice for additive manufacturing enthusiasts seeking versatility and integration.
• SolidWorks : Renowned as an industry standard for mechanical design, SolidWorks specializes in providing powerful parametric modeling capabilities paired with intuitive user interfaces. Its extensive library of features and add-ons facilitates intricate part design and assembly, making it ideal for additive manufacturing applications requiring precision and complexity.
• Tinkercad : Tinkercad stands out for its user-friendly, browser-based interface, catering to beginners and educators. Its intuitive drag-and-drop tools allow users to quickly create 3D models suitable for additive manufacturing projects, making it an excellent starting point for early enthusiasts and students exploring the world of 3D design.
• Blender : While primarily recognized as a versatile 3D modeling and animation software, Blender's specialty lies in its robust toolset and open-source nature. Its powerful sculpting and mesh editing features enable users to create complex geometries and organic shapes suitable for various designing & AM processes, making it a compelling choice for artists and designers seeking creative freedom.

Let's take a moment to gather ourselves. We've explored the world of additive manufacturing, including its various processes, available materials, essential design principles, and popular CAD software tools. With this understanding, it's time to examine how you can effectively apply this knowledge as a designer/engineer. So, let's delve into the Design for Additive Manufacturing (DfAM) workflow.

Conceptualization and Ideation

• Define Objectives and Constraints:

• • Clearly define the project's goals, including functional requirements, performance targets, and regulatory constraints.
  • Consider limitations imposed by the chosen additive manufacturing process, such as minimum feature size, build volume, and material compatibility.

• Generate and Explore Ideas:

• • Conduct brainstorming sessions, sketching exercises, and idea-generation workshops to explore various design possibilities.
  • Encourage cross-disciplinary collaboration and input from stakeholders to ensure diverse perspectives are considered.

• Concept Development and Selection:

• • Refine initial concepts based on feasibility, novelty, and alignment with project objectives.
  • Evaluate and prioritize concepts using technical feasibility, market demand, and potential impact criteria.

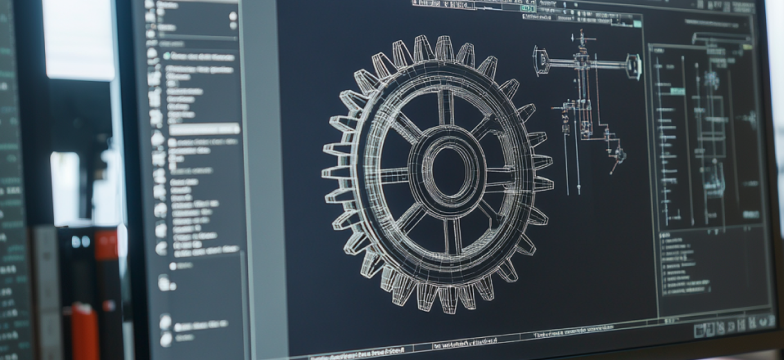

CAD Modeling

• Create Detailed 3D Models:

• • Utilize CAD software to develop detailed digital models of the intended product or part, considering geometry, dimensions, tolerances, and material properties.
  • Incorporate features such as fillets, chamfers, and draft angles to improve manufacturability and part quality.

• Optimize Designs for Additive Manufacturing:

• • Explore design freedom offered by additive manufacturing, including lattice structures, topology optimization, and organic shapes.
  • Consider design considerations specific to additive manufacturing processes, such as support structures, build orientation, and layer thickness.
  • Leverage parametric modeling techniques to explore design variations and optimize for performance, cost, and time-to-market.

Simulation and Analysis

• Virtual Testing and Analysis:

• • Utilize simulation software to predict and evaluate the behavior of designs under various operating conditions.
  • Perform structural analysis, thermal simulations, and fluid flow simulations to identify potential performance issues and optimize designs.

• Evaluate Manufacturability:

• • Assess the manufacturability of designs by simulating the additive manufacturing process in slicing software, which includes build orientation, support structures, and material deposition.
  • Identify potential issues such as warping, residual stresses, and poor surface finish, and iterate on designs to address them.

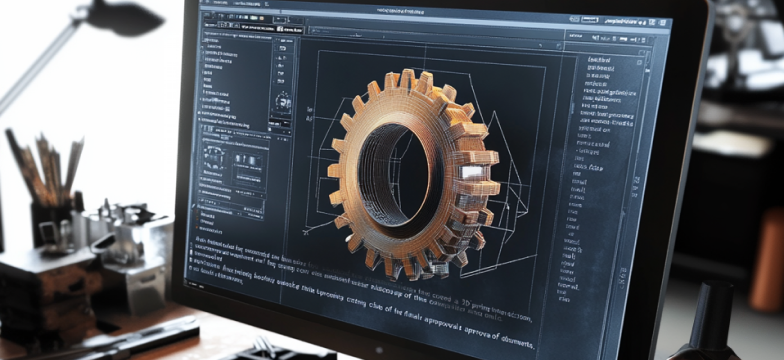

Design Optimization

• Iterative Refinement:

• • Iterate designs based on simulation results, mock-up feedback, and stakeholder input to address identified issues and optimize performance.
  • Balance trade-offs between design complexity, part quality, and manufacturing efficiency to achieve the desired outcomes.

• Utilize Advanced Optimization Techniques:

• • Leverage topology optimization, generative design, and machine learning algorithms to explore design spaces and identify optimal solutions.
  • Consider multi-objective optimization approaches to simultaneously optimize for conflicting objectives such as weight reduction, stiffness, and cost.

• Validate Design Changes:

• • Validate design changes through re-simulation and testing to ensure that proposed modifications achieve the desired improvements without introducing new issues.

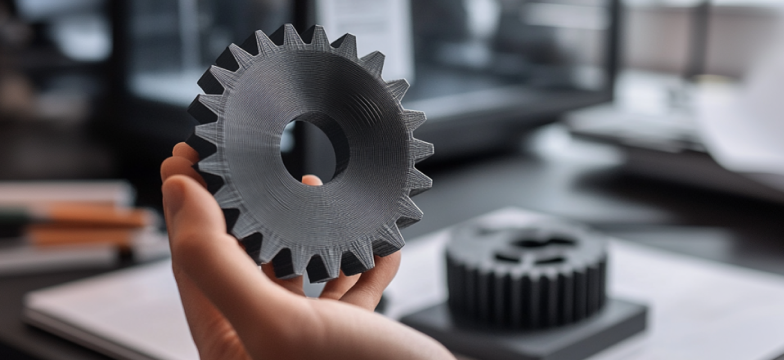

Prototyping and Testing

• Select Appropriate Additive Manufacturing Method and Materials:

• • Choose the most suitable additive manufacturing process based on factors such as part complexity, material properties, surface finish requirements, and production volume. Which additive manufacturing method is right for you? Click here to know.

• Fabricate Prototypes:

• • Utilize the selected additive manufacturing method to fabricate physical prototypes with accuracy and fidelity to the digital design.
  • Ensure that the manufacturing parameters, like layer thickness, build orientation, and material selection, are optimized to achieve the desired part quality and performance

• Conduct Rigorous Testing:

• • Perform comprehensive testing and validation of the prototypes to assess their functional performance, durability, and reliability under real-world conditions.
  • Use a combination of mechanical testing, environmental testing, and functional testing to evaluate the prototypes' suitability for their intended application.

Final Design Adjustments

• Incorporate Feedback and Lessons Learned:

• • Incorporate feedback from prototyping, testing, and stakeholder reviews into final design adjustments.
  • Address any remaining issues or concerns identified during the development process to ensure the final design meets all requirements and expectations.

• Document Design Changes:

• • Utilize the selected additive manufacturing method to fabricate physical prototypes with accuracy and fidelity to the digital design.
  • Ensure that the manufacturing parameters, like layer thickness, build orientation, and material selection, are optimized to achieve the desired part quality and performance

• Document Design Changes:

• • Document all design changes, revisions, and decisions made throughout the development process to maintain traceability and accountability.
  • Create detailed design documentation, including engineering drawings, specifications, and Bill of Materials (BOM), to guide manufacturing and assembly processes.

• Document Design Changes:

• • Finalize the design for production, ensuring that all necessary preparations are made for manufacturing, assembly, and quality control.
  • Coordinate with manufacturing partners and suppliers to transfer the design into production and ensure a smooth transition from development to deployment.

Final Production through Additive Manufacturing (Optional Step Based on Application of the Design)

• Scale-Up for Production:

• • Transition the optimized design from prototyping to full-scale production using additive manufacturing technologies.
  • Scale production volumes by optimizing manufacturing processes, streamlining workflows, and maximizing machine utilization.

• Manufacturing Process Optimization:

• • Fine-tune manufacturing parameters, such as build speed, layer thickness, and material handling, to optimize production efficiency and part quality.
  • Implement continuous improvement initiatives to identify and address bottlenecks, minimize waste, and enhance productivity throughout the manufacturing process.

• Quality Assurance and Control:

• • Establish rigorous quality assurance and control measures to ensure manufactured parts' consistency, reliability, and repeatability.
  • Implement inspection protocols, quality control checks, and validation procedures to verify compliance with design specifications and regulatory requirements.

• Supply Chain Integration:

• • Integrate additive manufacturing into the broader supply chain ecosystem by collaborating with suppliers, manufacturers, and logistics partners.
  • Explore opportunities for on-demand manufacturing, distributed production, and agile supply chain strategies to meet evolving market demands and customer requirements.

• Post-Processing and Finishing:

• • Implement post-processing techniques, such as surface finishing, heat treatment, Painting, and machining, to enhance manufactured parts' aesthetics, functionality, and performance.
  • Develop standardized post-processing workflows and procedures to ensure consistency and quality across production batches.

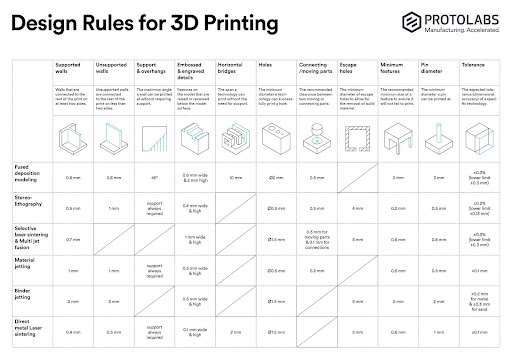

FDM Design Tips

• Minimize Overhangs: Keep overhangs below 45 degrees to reduce the need for support.
• Consider Layer Orientation: Align layers to maximize strength along the load-bearing direction.
• Ensure Adequate Wall Thickness: Use 1-2 mm thick walls for structural integrity.
• Add Filets to Corners: Reduce stress concentrations by rounding corners.
• Use Chamfers: Replace sharp edges with chamfers to improve print quality and reduce support needs.

SLA Design Tips

• Thin Walls and Fine Details: Keep overhangs below 45 degrees to reduce the need for support.
• Include Drainage Holes: Align layers to maximize strength along the load-bearing direction.
• Minimize Supports: Use 1-2 mm thick walls for structural integrity.
• Avoid Large Flat Surfaces: Reduce stress concentrations by rounding corners.
• Prepare for Post-Processing: Replace sharp edges with chamfers to improve print quality and reduce support needs.

SLS Design Tips

• Maintain Minimum Wall Thickness: Use 1-1.5 mm for adequate strength.
• Add Escape Holes: Include 2 mm holes for powder removal in cavities.
• Design for Moving Parts: Allow 0.5 mm clearance for interlocking parts.
• Leverage Surface Texture: Utilize the rough texture for functional or aesthetic purposes.

DMLS Design Tips

• Optimize for Support Removal: Design with easy access for removing supports.
• Maintain Consistent Wall Thickness: Use uniform wall thickness to prevent thermal stress.
• Include Filets and Chamfers: Reduce sharp edges to minimize stress concentrations.
• Plan for Post-Processing: Design for ease of surface finishing and heat treatment.

MJF Design Tips

• Uniform Wall Thickness: Aim for 1-2 mm to prevent warping and ensure strength.
• Clearance for Moving Parts: Ensure at least 0.5 mm clearance for articulated parts.
• Utilize Escape Holes: Design with holes for powder removal in internal cavities.
• Minimize Supports: Use MJF's minimal support requirement by designing self-supporting features.

Case Studies and Examples

Successful Design Projects

Common Design Challenges and Solutions

Future Trends in Additive Manufacturing Design

Advances in Materials

The development of new materials, including high-performance polymers, biocompatible resins, and advanced metal alloys, is expanding additive manufacturing applications. These materials offer improved mechanical properties, biocompatibility, and environmental resistance, opening new possibilities for healthcare, aerospace, and automotive industries.

Innovations in 3D Printing Technologies

The relentless progress in 3D printing technologies, such as multi-material printing and hybrid manufacturing, is not just enhancing the capabilities and efficiency of additive manufacturing, but also reshaping the very limits of design and manufacturing. These innovations are empowering the production of more intricate and functional parts, heralding a new era in the industry.

Impact of AI and Machine Learning

Artificial intelligence (AI) and machine learning are revolutionizing additive manufacturing, providing powerful tools to enhance design and production processes.

Conclusion

Designing for additive manufacturing (AM) isn't just a new approach, it's a transformative one. It opens up possibilities for creating complex, customized, and efficient products that were once unimaginable.

By understanding various AM processes and materials, designers can fully leverage AM's unique advantages, sparking a new era of design and manufacturing. This guide has covered essential design principles, key considerations, and a comprehensive workflow for AM. AM's benefits, such as customization, complex geometries, reduced material waste, faster prototyping, and cost-effective production, highlight its potential to revolutionize manufacturing.
